Understanding DDoS Protection: A Tutorial
Overview of DDoS Protection
DDoS Protection is a necessity in a growing internet threat landscape. There are many types of Distributed Denial of Service (DDoS) attack schemes that are used today, and they are steadily becoming more sophisticated. The primary goal of a DDoS attack is to deny legitimate users access to network or application services. DDoS attacks accomplish this goal by overwhelming targeted network or server resources with traffic or requests for service from many different sources – potentially hundreds of thousands or more. This makes it impossible to stop the attack simply by identifying and blocking a single sending IP address. The sheer distribution of attacking sources also makes it very difficult to distinguish legitimate user traffic from attack traffic when spread across so many points of origin.
There are two steps involved in DDoS protection—DDoS detection to identify the attack—and DDoS mitigation to stop the attack. In order to detect an attack, one has to gather a sufficient amount of data by monitoring network-wide traffic flows, then rapidly and accurately analyze that data. The speed and accuracy of detection is the key to effectively stopping or mitigating attacks. DDoS mitigation is the combined use of attack detection with one or more remediation techniques including traffic flow filtering, rate-limiting, and blocking/dropping, so attacks can’t consume resources needed to service legitimate traffic. Detection and mitigation/remediation techniques need to work in real-time and in harmony to ensure minimal network and service downtime due to DDoS attacks.
The Omnipresent DDoS Threat
There is no doubt, as evidenced in the alarming rise of DDoS attacks, that identifying and stopping DDoS attacks is an absolute necessity for businesses that rely on Internet traffic to in order for them to avoid disruption of applications and services, revenue loss, and brand damage.

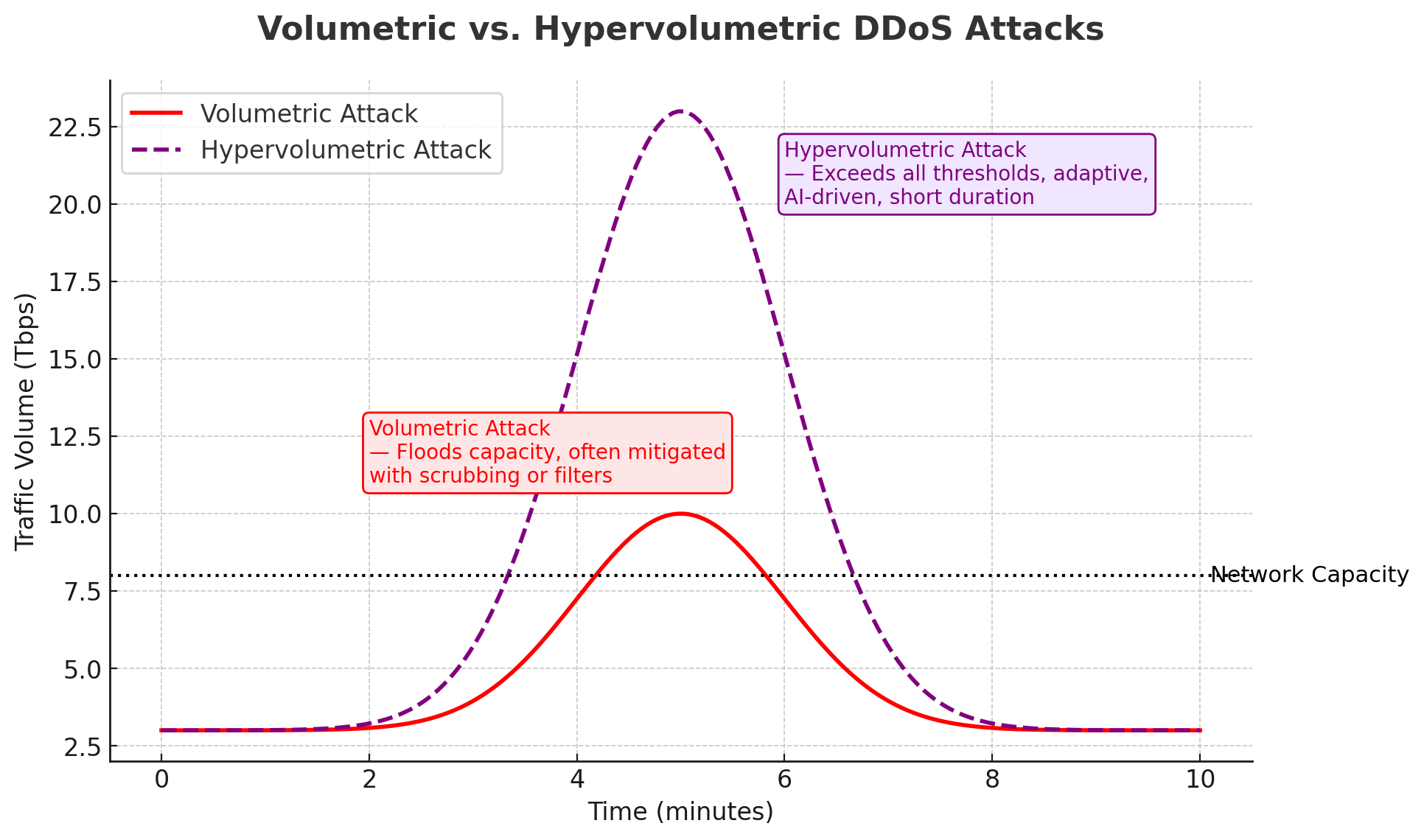

The majority of DDoS attacks are volumetric in nature, with the intent to congest all of the target network’s bandwidth related to a service or network segment. Roughly 90% of all DDoS attacks are volumetric, with application-layer attacks making up the remaining 10%. According to Akamai’s Q3 2016 State of the Internet Report, the majority of volumetric attacks are IP flood attacks involving a high volume of spoofed packets such as TCP SYN, DNS, UDP, or UDP fragments.
DDoS attacks are rapidly increasing in frequency and size. While mega attacks that last for many hours and reach 200 Gbps or more make the news, the vast majority of attacks last under an hour and are less than 1 Gbps in volume. Smaller attacks often happen without being noticed, though they may be harbingers of larger attacks to come. Mid-sized attacks are more readily felt, but distinguishing between a friendly surge in normal traffic and an attack is key to timely response. Large attacks are fairly obvious, and in these cases diagnosing the traffic is important to understand network entry points and sources. In all cases, a clear detection assessment is important to understand the best most expedient way to mitigate the attack.
In-line versus Out-of-band DDoS Protection
There are two primary means of implementing DDoS protection: an in-line protection appliance or out-of-band detection via traffic flow record analysis that integrates with any mitigation technique, whether on-premise or in the cloud. When performing in-line DDoS protection, all traffic is sent through one or more DDoS protection appliances that support deep packet inspection. The appliances examine the incoming traffic, and if particular traffic flows or packets are determined to be attacks, they are discarded, while legitimate traffic is allowed to pass through.
The basic in-line DDoS protection capabilities of network devices such as load balancers, firewalls or intrusion prevention systems may have once provided acceptable detection and mitigation when DDoS attacks were less sophisticated but high-volume attacks can overwhelm these devices, and sophisticated multi-vector DDoS attacks can often evade them because they are network location specific.
Out-of-band DDoS protection utilizes flow data from NetFlow, J-Flow, sFlow, and IPFIX-enabled routers and switches to understand unusual traffic spikes that occur across the network and detect attacks. Attack mitigation via in-line devices or routing methods that drop selected traffic is then triggered manually or automatically.
How Cloud and Big Data Help Improve DDoS Protection Accuracy
The first generation of out-of-band DDoS detection solutions were based on single server software design. While far better than nothing, single servers simply don’t have the compute, memory and storage resources to track high volumes of traffic data on a network-wide basis. This is particularly true when attempting to perform dynamic baselining, which requires scanning tens of billions of flow records to establish baselines over time, in order to assess whether current conditions constitute an anomaly. Regardless of whether it is deployed on-premises or in the cloud; single server DDoS protection is insufficient to accurately detect and mitigate today’s attacks in a consistently reliable fashion.
The key to solving the DDoS protection accuracy issue is big data. By using a scale-out system with far more compute and memory resources, a big data approach to DDoS protection can continuously scan network-wide data on a multi-dimensional basis without constraints.
Cloud-scale big data systems make it possible to implement a far more intelligent approach to the problem, since they are able to:
- Track and baseline millions of IP addresses across network-wide traffic, rather than being restricted to device level traffic baselining
- Monitor for anomalous traffic using multiple data dimensions such as the source geography of the traffic, destination IPs, and common attack ports. This allows for greater flexibility and precision in setting detection policies.
- Apply learning algorithms to automate the upkeep of detection policies to include all relevant destination IPs.
Of course, constructing an open-source big data system for DDoS detection isn’t trivial. However, cloud-based/SaaS network visibility and DDoS detection systems are making it far easy to get the advantages of big data for DDoS mitigation without making major capital and R&D investments.
These advances are making a new hybrid model possible, where DDoS detection is performed by a best-of-breed, cloud service that automates the triggering of RTBH, on-premises and cloud-based mitigation appliances. Big data detection systems also provide the added benefit of deep, forensic analytics, plus the ability to incorporate network performance, planning and other capabilities.
